Maximum rated current 5 8a.

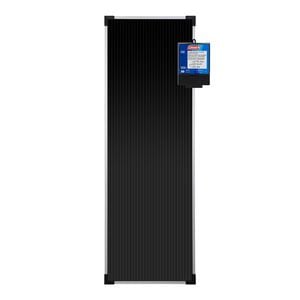

How to connect multiple coleman solar panels.
In fact by wiring several solar panels in series we increase the voltage keeping the same current while wiring them in parallel we increase the current keeping the same voltage.
Connect the negatives to the negatives and positives to the positives.
Connecting two solar panels in parallel.
Consider having a set of four solar panels.
If we have two or more solar panels with the same voltage but with different current it is not possible to wire them in series.
This will connect two panels in parallel by connecting the two positive wires together and the two negative wires together.
This is the first part of our video on how to connect your panels in series and parallel.
Parallel series and a combination of parallel and series.
For more information visit the page how to wire solar panels in parallel.
The connection of multiple solar panels in parallel arises from the need to reach certain current values at the output without changing the voltage.
Ptot p1 p2 p3 p4 9v 3a 3a 3a 1a 90w.
Nonetheless it is possible to wire them in parallel.
For example our 115w sunpower solar blanket has the following ratings.
Y connectors would also be useful for the battery clamps and don t forget the fuses.
There are 3 ways to connect solar panels.
The parallel connection allows to increase the current keeping the same voltage.
If you connect these four panels in parallel all of them must have the same voltage and therefore will generate at the maximum possible voltage for one of the panels which means 9v.
The positive wires will be separate from the negative.
Three panels of 12v and 3a and one panel of 9v and 1a.
If you want to combine two panels with mc4 connectors you can do so using an mc4 y branch click to view on amazon.
Maximum rated voltage 19 8v.
The first way i am going to talk about is parallel because this is probably the most common way that panels will be connected.
The panels themselves deliver 2 3a you could connect 2 panels in parallel to the same 7a controller using y connectors to save on some wiring but you are losing a led to indicate both panels are working.
For this example i am showing you connecting panels that are for a 12 volt system.
